Double Gear Trawl Block
- Part no.
- 350x150-22210C3
- WLL
- 8 T
- Dimensions
- H700 x D400 x W156 mm ID
- Mass
- 95 kg
- Material / finish
- Galvanised and painted
Catalogue
Products
All items are manufactured in Mandurah and individually tested and certified. Ratings are shown exactly as published for each item (WLL). If you need something not listed, ask.

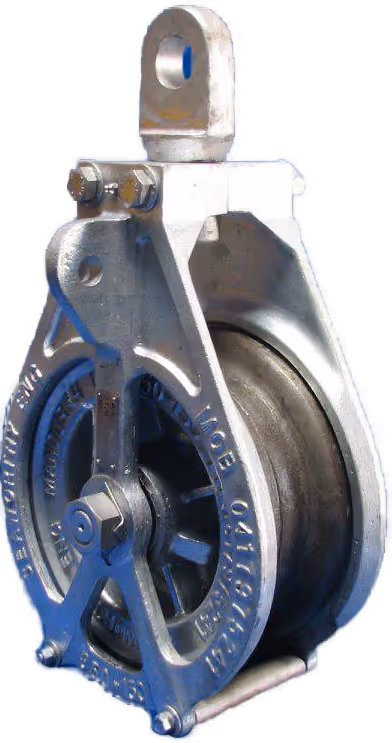

Trawl blocks
Double-gear and single trawl blocks for net and warp handling
Rigging blocks
Cod end, try, stirrup, snatch and general purpose blocks
Double Gear Cod End Rigging Block
- Part no.
- 250x170-PS
- WLL
- 6 T
- Dimensions
- H577 x D290 x W170 mm ID
Cod End Rigging Block
- Part no.
- 250X110NYB-PS
- WLL
- 6 T
- Dimensions
- H577 x D290 x W110 mm ID
- Material / finish
- Nylon sheave
Try Rigging Block
- Part no.
- 250X110SS
- WLL
- 6 T
- Dimensions
- H577 x D290 x W110 mm ID
- Material / finish
- Stainless steel
General Purpose Block
- Part no.
- 220x100-NYB
- WLL
- 4 T
- Dimensions
- H535 x D250 x W100 mm ID
- Material / finish
- Nylon sheave
Stirrup Rigging Block
- Part no.
- 1STB
- WLL
- 3 T
- Dimensions
- H340 x D125 x W125 mm ID
- Material / finish
- 316 grade stainless, nylon roller
Stirrup Rigging Block
- Part no.
- 3STN
- WLL
- 3 T
- Dimensions
- H370 x D125 x W125 mm ID
- Material / finish
- 316 grade stainless, nylon roller
Snatch Rigging Block
- Part no.
- 4SNB
- WLL
- 1.5 T
- Dimensions
- H388 x D150 x W55 mm ID
- Material / finish
- 316 grade stainless, nylon roller
Photo to come
Lifting and sheave blocks
Heavy sheave blocks for lifting duty
500x300 Sheave Lifting Block
- Part no.
- 500x300-3212C3X4
- WLL
- 20 T
- Dimensions
- H1135 x D555 x W320 mm ID
- Mass
- 300 kg
Stabiliser equipment
Springers and wings for vessels to 32 m
Stabiliser Springer
- Part no.
- 6SPHD
- Dimensions
- H950 x D200 x W200 mm
- Mass
- 35 kg
- Material / finish
- Galvanised and painted
- Note
- Vessel size up to 32 m

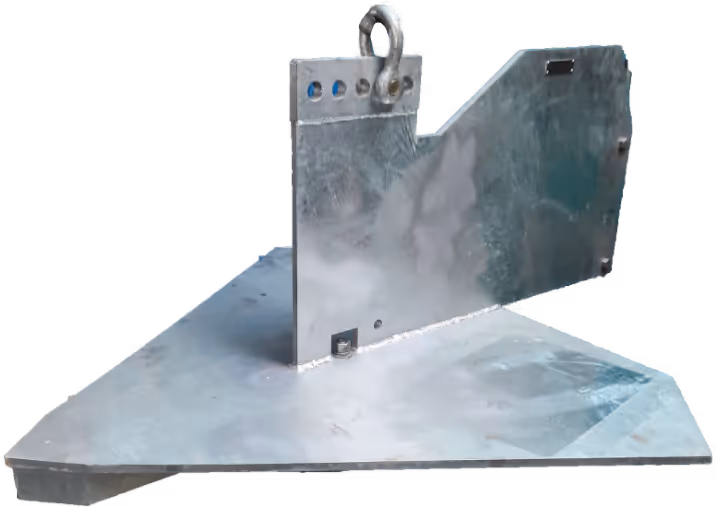

Stabiliser Wing
- Part no.
- 7SW
- Dimensions
- H520 x L1200 x W1000 mm
- Mass
- 88 kg
- Material / finish
- Galvanised and painted, c/w anode
- Note
- Vessel size up to 32 m
Components
Swivel eyes, connecting knuckles, sheave assembly kits

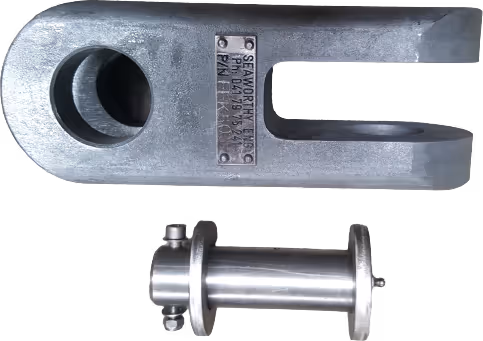

Connecting Knuckle F/F and M/F
- Part no.
- L255x100x100
- Material / finish
- 316 stainless steel, pin and washer to suit

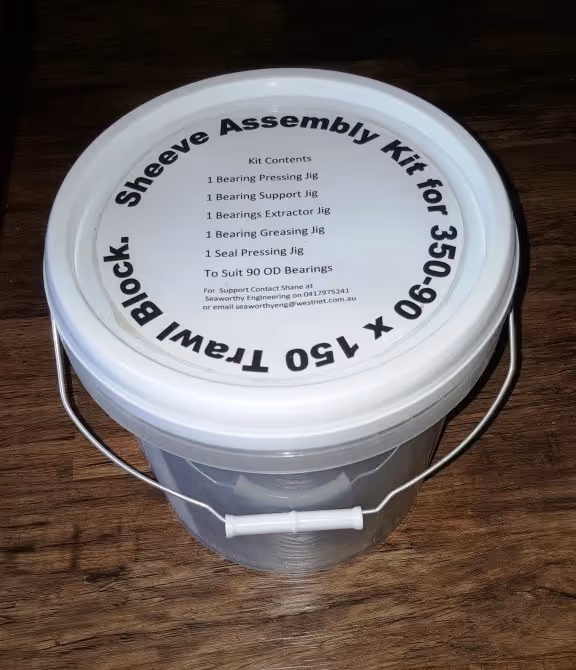

Sheave Assembly Kits
- Part no.
- 500X300, 350-90X150, 350-80X150, 350-80X110
- Note
- Bearings, seals and hardware to suit each block size
Reconditioned equipment
Fully reconditioned blocks, subject to availability

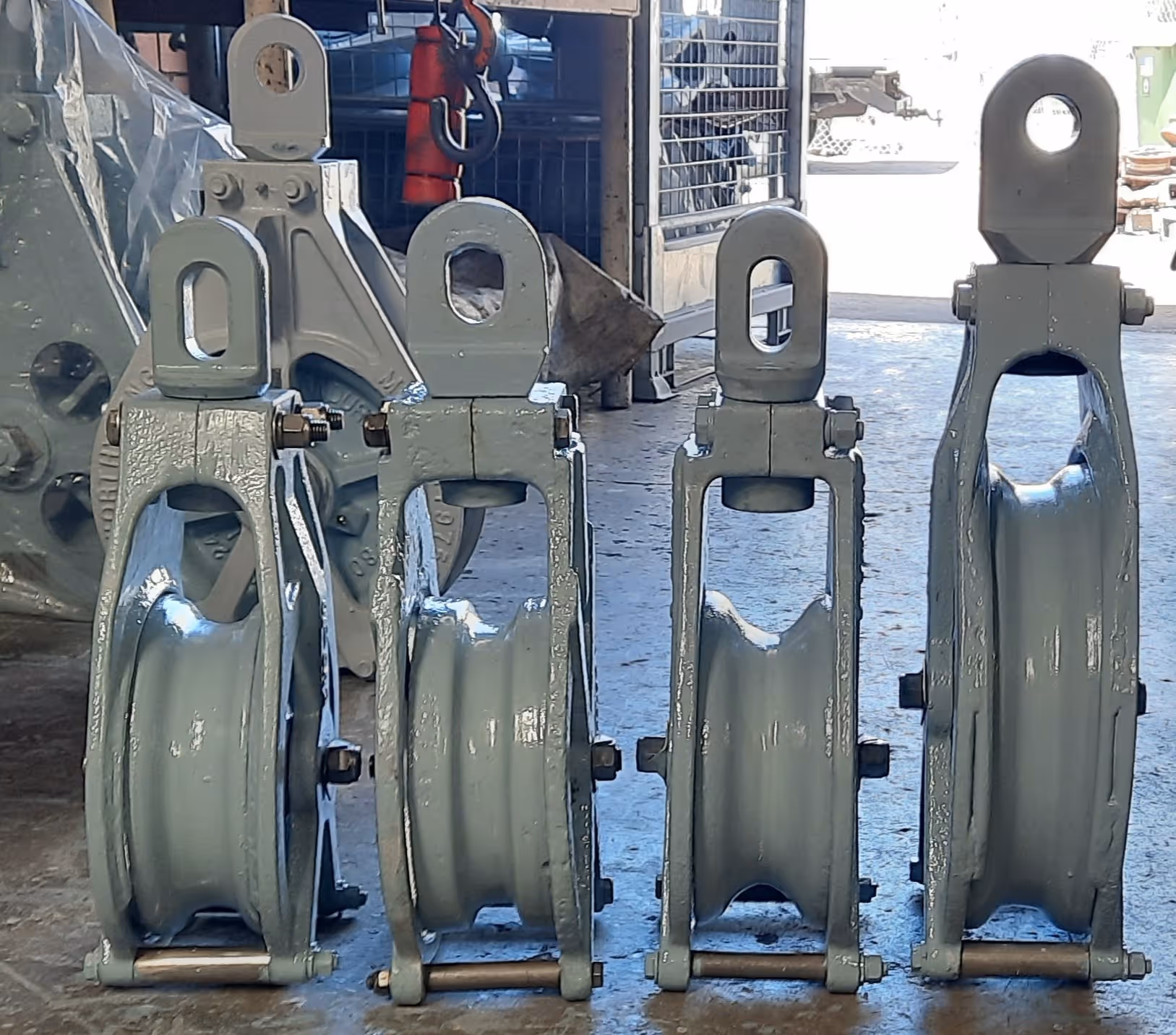

Fully Reconditioned Blocks
- Part no.
- Various
- Note
- Call Shane on 0417 975 241 for availability and pricing
Need a block, repair or custom solution?
Talk to Shane directly. Workshop hours Monday to Friday, 8am to 4pm WST.
